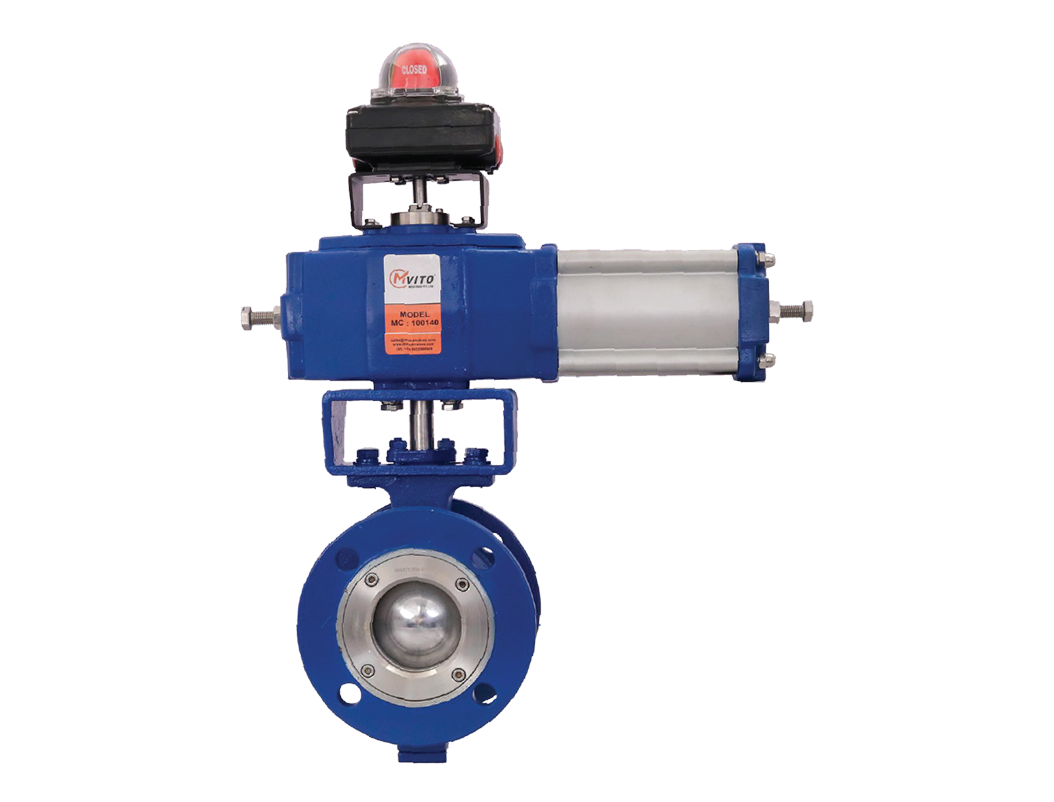

Segment Ball Valve
- ONE PIECE COMPACT BODY
- V NOTCH BALL PROVIDES
- SHEARING FORCE AND AUTO-CLEANING
- STRAIGHT FLOW AND OPENED
- UP BODY CAVITY WITH LESS FLUID RESIDUE
- SIDE ENTRY SEAT PROVIDES
- EASY MAINTENANCE
- BEARING PROTECTED SHAFTS
TECHNICAL SPECIFICATION :
DN: DN20 ~DN250
PN: Pn10 ~ Pn64, ANSI150LB, 300LB
Connection: Wafer/Flange
Templerature C : -29~120 / -29~230 / -40~560
Sealing: Metal Seat / So Seat
Flow Characteristic : /Equal percentage
Tightness Class:IV V/Class IV,V.
Rangeability:300:1
Body Material : (1) WCB (2) Cf8 (3) CF8M (4) CF3M
Actuator :Pneumatic, Electric Motor
APPLICATION
IT IS SUITABLE FOR CONTROL SYSTEM IN INDUSTRIES INCLUDING
PLUP AND PAPER
CHEMICAL
PETROLEUM
BIOCHEMISTRY
CHEMICAL FIBER
PHARMACEUTICAL
ENVIRONMENTAL PROTECTION
ETC
ESPECIALLY SUITABLE FOR CONTROL OF MEDIUM
